S-Camshaft
Camshaft Quick Identification Guide

CAUTION! The items in this catalog are listed for use only in the applications and interchanges that appear in the catalog. Other use could result in property damage or serious personal injury. Always refer to the vehicle, trailer, or component manufacturer's service manual when performing vehicle maintenance.

NOTE: The data listed herein is correct to the best of our knowledge and belief, having been compiled from reliable and official sources of information. However, we cannot assume any responsibility for possible errors.

If any errors are found, or you have suggestions on ways to improve future catalogs, we want to hear from you. Please complete the Catalog Comment Form in the back of this catalog. Thank you for your assistance.

  1. Measure camshaft length. Measure from under the cam head to the beginning of the lock ring groove.
  2. Locate camshaft length in the Camshaft Quick Identification Guide. Camshafts are listed in order of length, from shortest to longest.

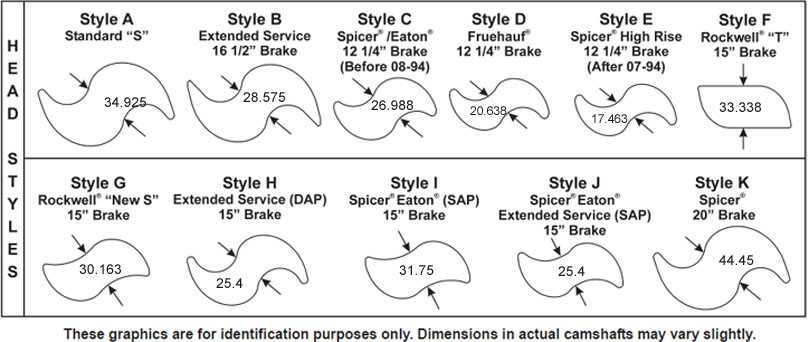

  3. After finding camshafts in the Cam Length column, determine camshaft head style, using the Head Styles chart and head width dimensions.
  4. Narrow your final selection by Diameter at Spline End and Number of Splines, Diameter at Spider and any other information listed.
These graphics are for identification purposes only. Dimensions in actual camshafts may vary slightly.
Our Site
Home
Products
About Us
Product List
Quality
Sitemap
Feedback
Email
Contact Us
>>
Camshaft for Rockwell
Cam Length Head Style Diameter at Spline End & No. of Splines Diameter at Spider Spicer Part
Number
Side Axle Type* Brake Manufacturer Brake Size Notes
123.825 A 38.10 10 38.10 17-600
17-601
RH
LH
T Spicer 419.10 Spicer Custom Trunnion Suspension; 26.988 tip
129.381 A 38. 10 10 38.10 18-792
18-793
RH
LH
D Rockwell 419.10
132.159 A 38.10 10 38.10 18-992
18-993
RH
LH
S Rockwell 368.30 "W" Brake
136.525 A 38. 10 10 38.10 18-990
18-991
RH
LH
S Rockwell 368.30 "W" Brake
139.70 A 38.10 10 38.10 17-602
17-603
RH
LH
T Spicer 419.10 Spicer Custom Trunnion Suspension; 26.988 tip
145.256 A 31.75 10 31.75 18-910
18-911
RH
LH
S Wagner 381.0
146.844 A 38.10 10 38.10 18-840
18-841
RH
LH
S Rockwell 381.0 "T" Series Brake
155.575 A 38.10 10 38.10 17-604
17-605
RH
LH
T Spicer 419.10 Spicer Custom Trunnion Suspension; 26.988 tip
158.75 A 38.10 10 38.10 18-986
18-987
RH
LH
D Rockwell 368.30 "W" Brake
161.925 A 38.10 10 38.10 18-800
18-801
RH
LH
D Rockwell 419.10
171.45 A 38.10 10 38.10 17-606
17-607
RH
LH
T Spicer 419.10 Spicer Custom Trunnion Suspension; 26.988 tip
*Axle Type: S = Steer, D = Drive, T = Trailer
